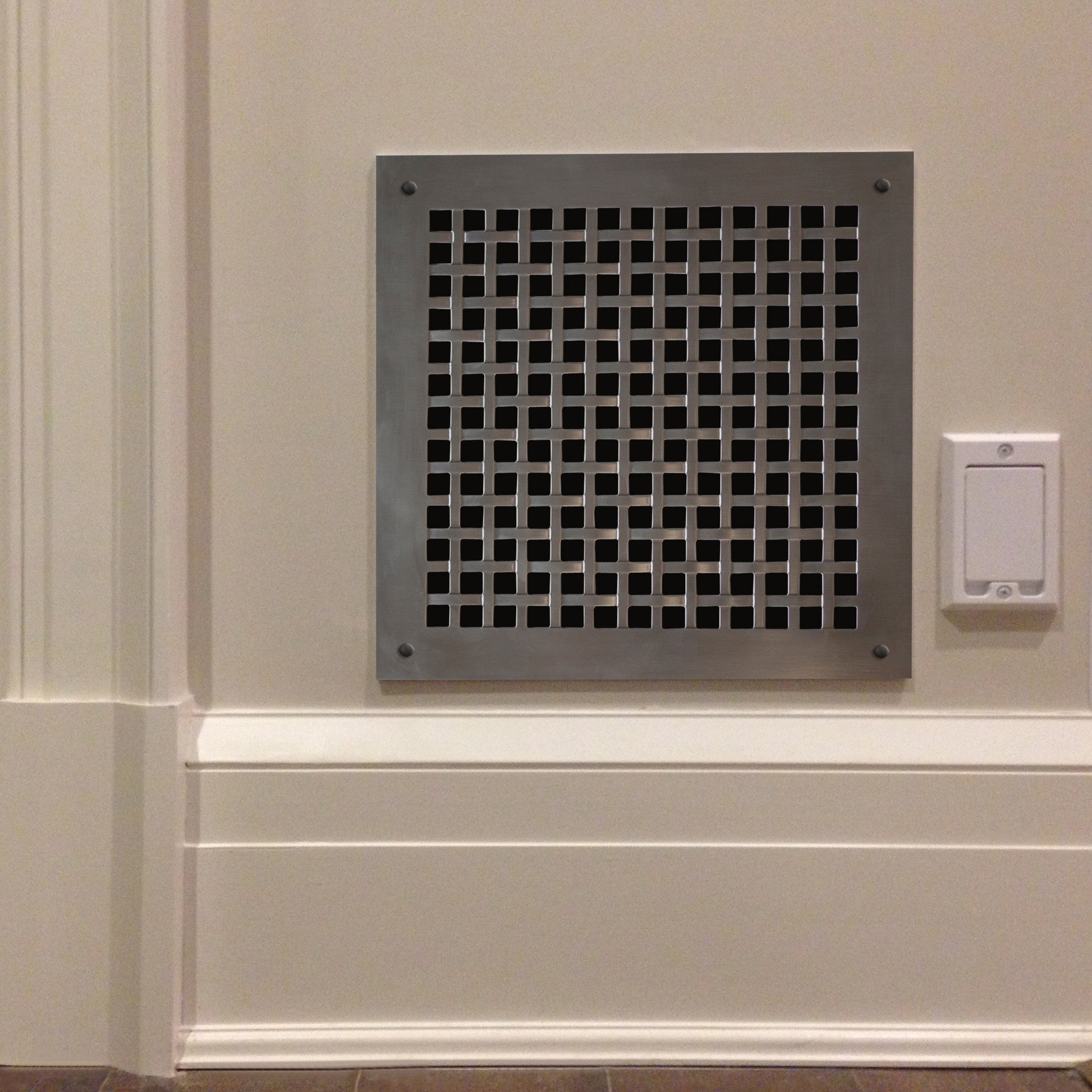

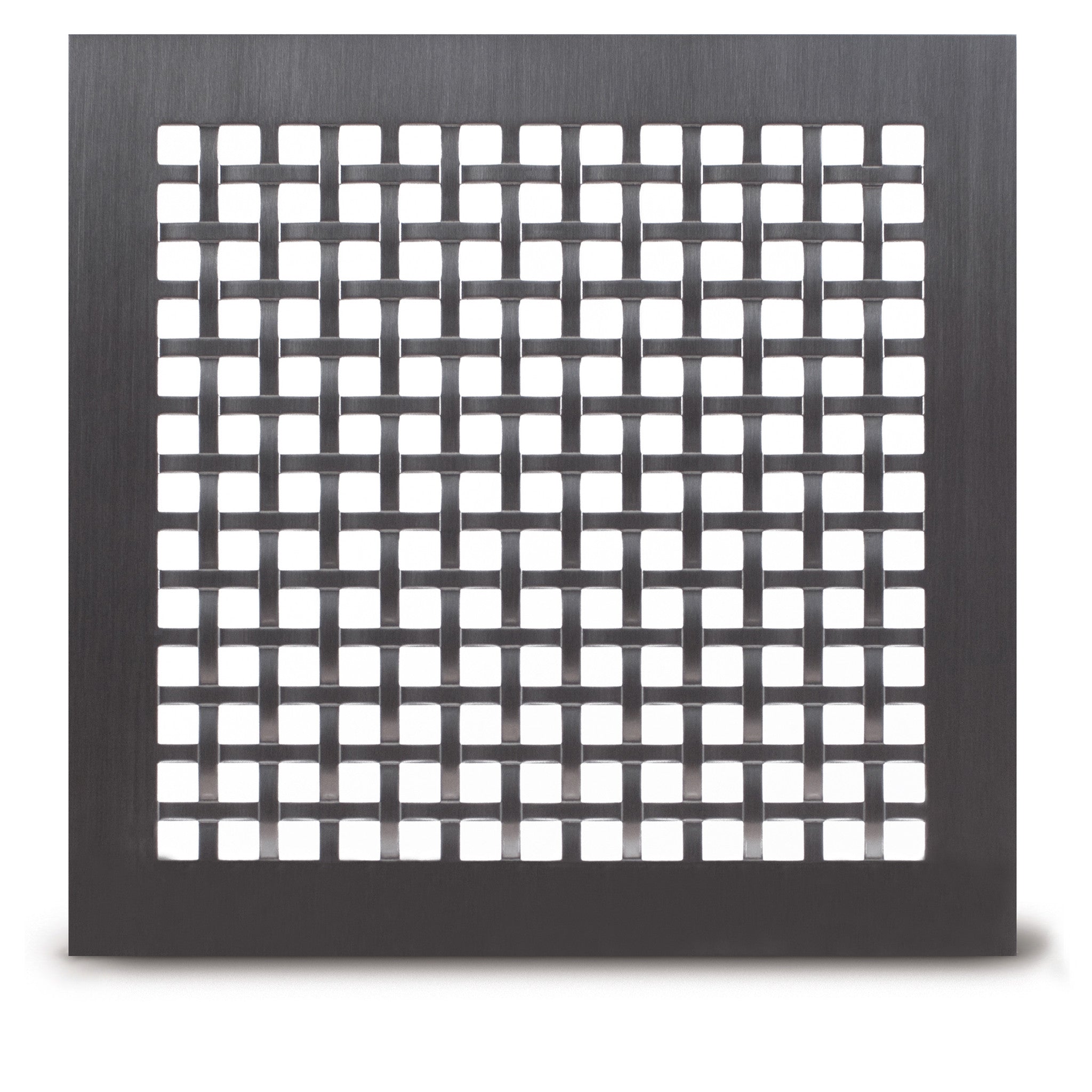

228 Weave Perforated Grille
Using metal materials, the #228 Weave Perforated Grille replicates the traditional fabric production method of interweaving warp & weft threads. This intricate and classic design can be used to gain optimal air flow and ventilation in any residential or commercial space.
With a variety of materials and finishes to choose from, this pattern can be fully customized in thickness and size to your architectural needs and engineering requirements.
NOTE: This pattern requires stiffener bars to prevent the grille from bowing
Pattern Dimensions:
- ½” pattern - 45% open area
|
MATERIAL |
PUNCHED THICKNESS* (min-max) |
FINISH |
|
Aluminum |
1/16” – 14 GA |
Satin, Primed, Anodized Colors (Clear, Black, Duranodic: Light, Medium, Dark), Powder Coating Colors |
|
Brass |
1/16” – 14 GA |
Satin, Statuary (US10B): Light, Medium, Dark |
|
Bronze |
1/16” – 14 GA |
Satin, Statuary (US10B): Light, Medium, Dark |
|
Stainless Steel |
1/16” – 14 GA |
Satin |
|
Steel |
1/16” – 14 GA |
Raw, Primed, Powder Coating Colors |
*NOTE: ADDITIONAL THICKNESSES AVAILABLE – PLEASE ASK YOUR ESTIMATOR FOR DETAILS
Resources: For Fastening + Mounting Methods - refer to "Perforated Grilles"
