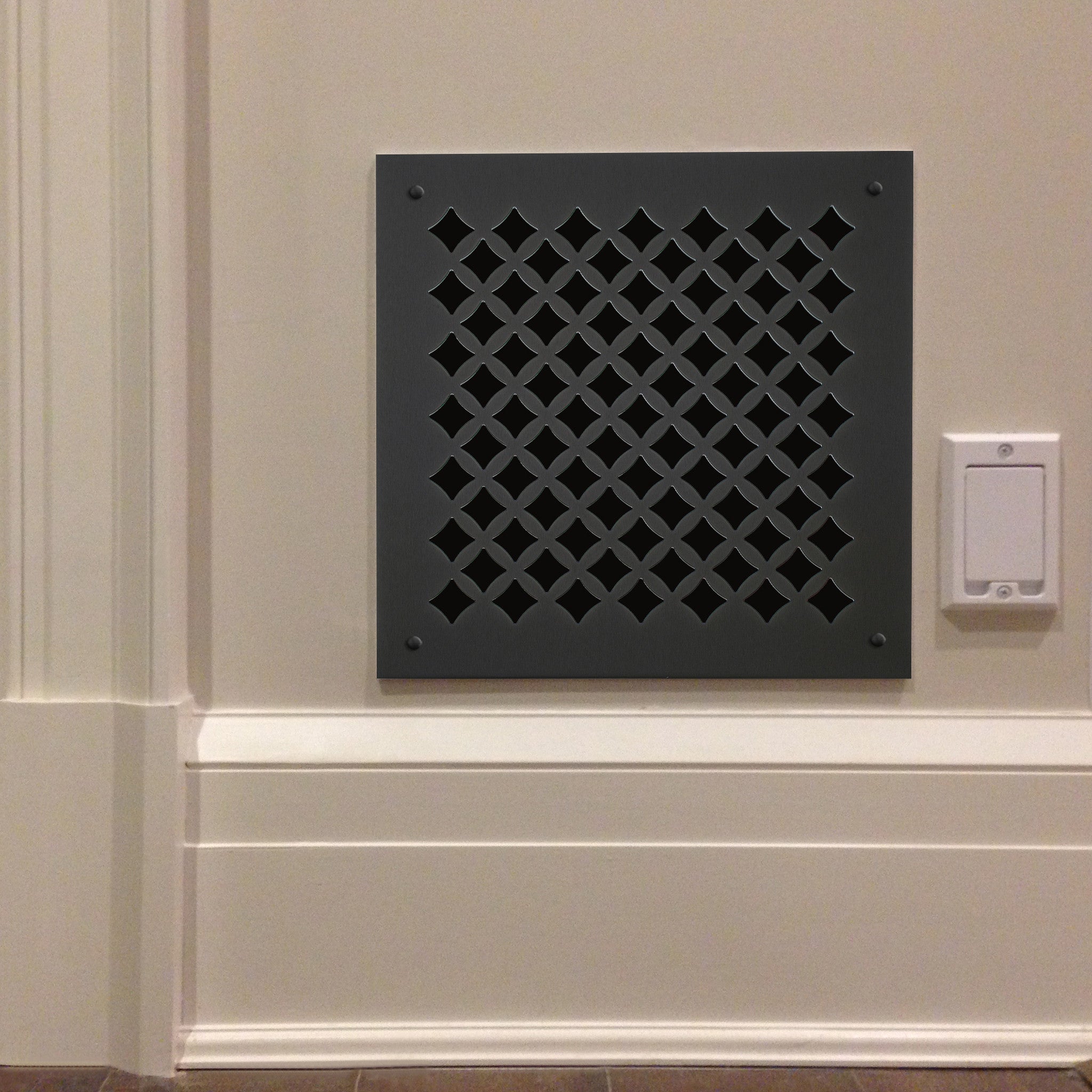

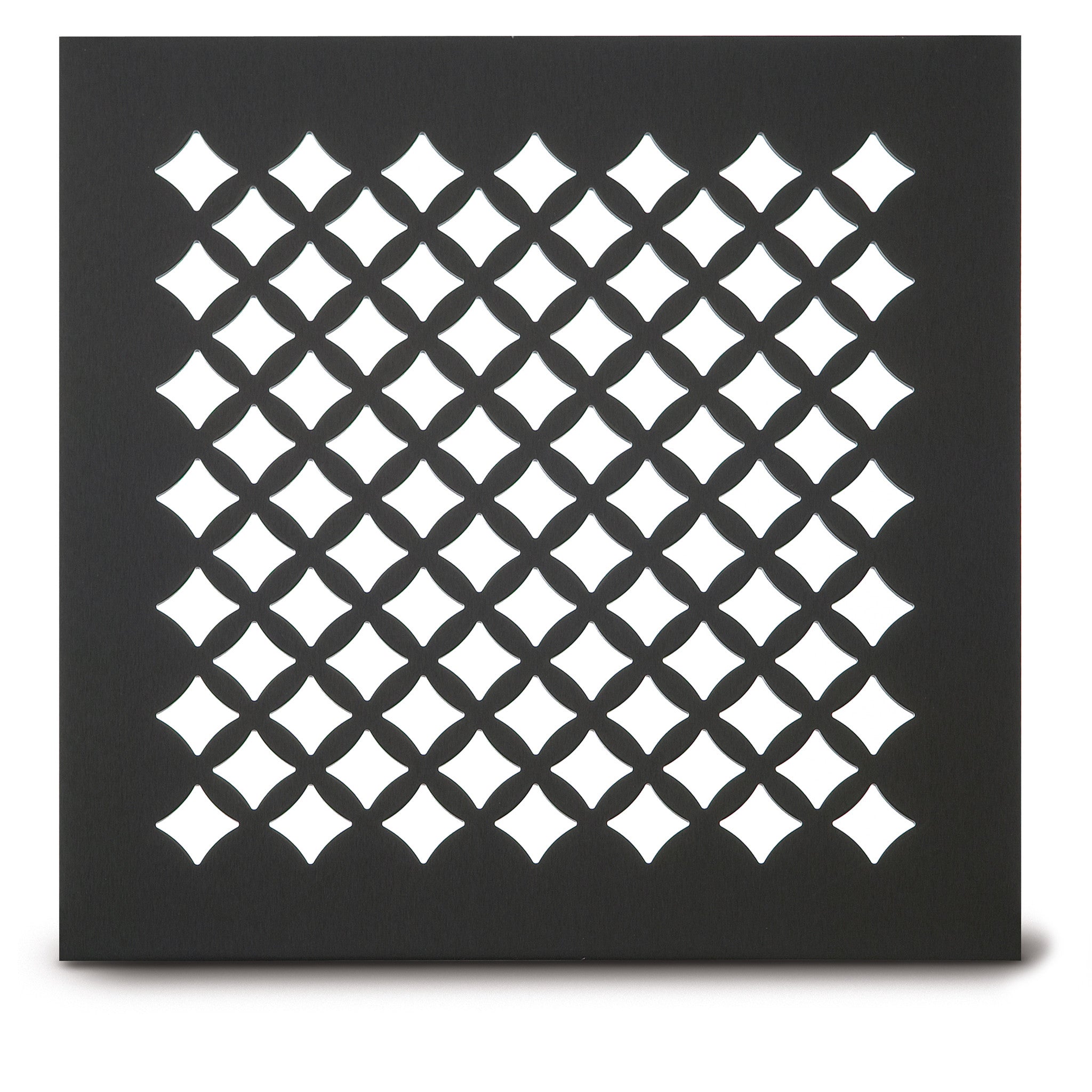

223 Mosaic Perforated Grille
The #223 Mosaic Perforated Grille is an assemblage of small diagonal square perforations inside interlocking circular patterns. This contemporary and modern design is ideal for residential and commercial applications requiring optimal air flow and ventilation.
With a variety of materials and finishes to choose from, this pattern can be fully customized in thickness and size to your architectural needs and engineering requirements.
Pattern Dimensions:
- 1¹⁄₃₂” pattern - 54% open area
|
MATERIAL |
PUNCHED THICKNESS* (min-max) |
FINISH |
|
Aluminum |
1/16” – 1/8” |
Satin, Mirror Polish, Primed, Anodized Colors (Clear, Black, Duranodic: Light, Medium, Dark), Powder Coating Colors |
|
Brass |
1/16” – 1/8” |
Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark |
|
Bronze |
1/16” – 1/8” |
Satin, Mirror Polish, Statuary (US10B): Light, Medium, Dark |
|
Stainless Steel |
1/16” – 14 GA |
Satin, Mirror Polish |
|
Steel |
1/16” – 1/8” |
Raw, Primed, Powder Coating Colors |
*NOTE: ADDITIONAL THICKNESSES AVAILABLE – PLEASE ASK YOUR ESTIMATOR FOR DETAILS
Resources: For Fastening + Mounting Methods - refer to "Perforated Grilles"
